NATURAL PET

PET SERIES

NGM-T12

PET: English name Polyethylene Terephthalate , is an engineering plastic profile made of crystalline thermoplastic polyester. Hard, good stiffness, high strength, toughness, small friction coefficient, high dimensional stability.



KEY PROPERTY:

Mechanical strength, stiffness and hardness. Good sliding performance and wear resistance, good electrical insulation, very good creep resistance, low and stable friction coefficient excellent wear resistance (better compared with nylon), very good dimensional stability (better than POM), physiological inertia ((suitable for contact with food).



PRODUCT SIZE:

Material quality	Name of a part	Sheet model	Pigment	Thickness unit:mm	Thickness deviation unit:mm	Full board size unit:mm	Stick size unit:mm	Remarks
PET	PET Sheet/ rod	T12	Naturalblack	T6-T100 TT12-T35	+0.5~+2.5	620*1250 1250*2020	φ*2020



Product features:

High mechanical strength

Strong wear resistance

Good electrical insulation

Worm

Excellent size stability



Application area:

• Parts, precision machine bearings
• electrical insulating material
• Bearing, guide
• Food processing machine head
• Pistons, screw roll and other food treatment equipment

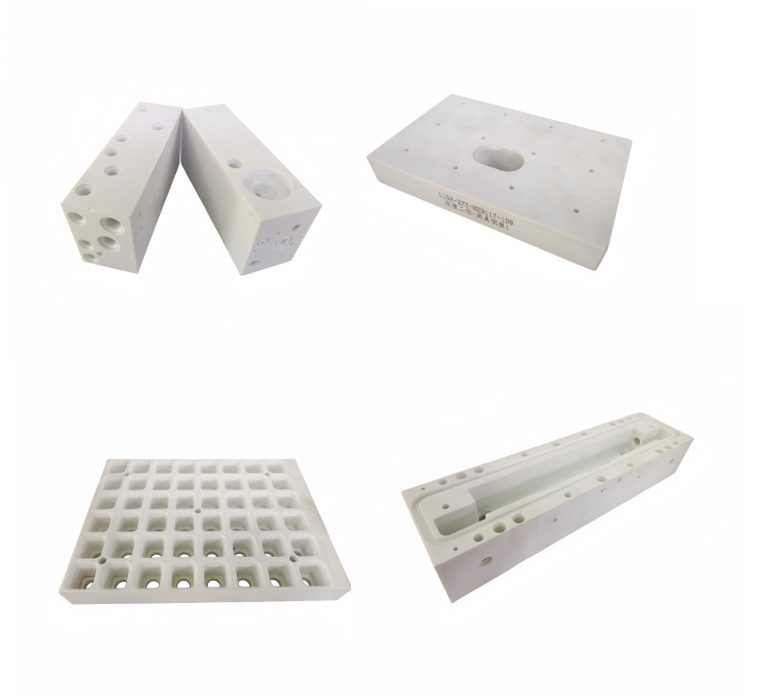

Processing parts display:





	Feature project	Testing standard	Test condition	Unit	PET
					T12
					PET
					White / black
Physical property	density	ISO 1183	－	g/cm ³	1.39
	water absorption	ISO 62	23℃ / 50 RH in the air	%	0.25
	water absorption	ISO 62	23℃ / water soaked	%	0.5
Hot property	melting point	－	－	℃	255
	maximum operation temperature	snatch	－	℃	150
	Long-term use temperature	Continuous: 5000 / 20000	－	℃	100
	Minimum use temperature	－	－	℃	_
	coefficient of expansion due to heat	ISO 11359	Mean values between 23 – 100℃	m/(m.K ）	_
	coefficient of expansion due to heat	ISO 11359	Mean values between 23– 150℃	m/(m.K ）	_
	distortion temperature	ISO 75	1.8Mpa	℃	95
	Wika softens the temperature	ISO 306	VST/B/50	℃	_
	glass state temperature	ISO 3146	－	℃	_
Mechanical behavior	tensile strength	ISO 527	Yield to 10mm / min	Mpa	89.4
	elongation at break	ISO 527	Break at 10mm / min		13
	modulus in tension	ISO 527	－	Mpa	_
	bending strength	ISO 178	2mm/min	Mpa	122
	flexural modulus	ISO 178	2mm/min	Mpa	3536
	Impact strength of the cantilever gap	ISO 180	1eA/23℃	KJ/m2	80
	Impact strength of the simple support beam gap	ISO 179	1eA/23℃	KJ/m2	_
	Rockwell hardness	ISO 2039	23℃	_	110
	shore hardness	ISO 868	23℃	D/15:	85±2
Electric performance	dielectric constant	IEC 60250	1mHZ/23℃/50 RH	－	3.2
	dielectric dissipation factor	IEC 60250	1mHZ/23℃/50 RH	－	0.0023
	dielectric strength	IEC 60243	23℃/50 RH	KV/mm	60
	surface resistivity	IEC 60093	23℃/50 RH	Ω˙cm	≧1012
	mass resistivity	IEC 60093	23℃/50 RH	Ω	≧1012
	combustibility	UL94	3mm	－	HB
